Modular Plating for Expandable Cage Technologies
➢ 1-, 2-, & 4-Hole Plate Options
➢ Ability to Select Plate Length Based on Procedural Needs
➢ Highly Variable, Self-Drilling Screws
➢ N-GAGE™ Polyaxial Couplers
➢ Stand-Alone Indications (2- & 4- Hole Plates)
➢ 1-, 2-, & 4-Hole Plate Options
➢ Ability to Select Plate Length Based on Procedural Needs
➢ Highly Variable, Self-Drilling Screws
➢ N-GAGE™ Polyaxial Couplers
➢ Stand-Alone Indications (2- & 4- Hole Plates)

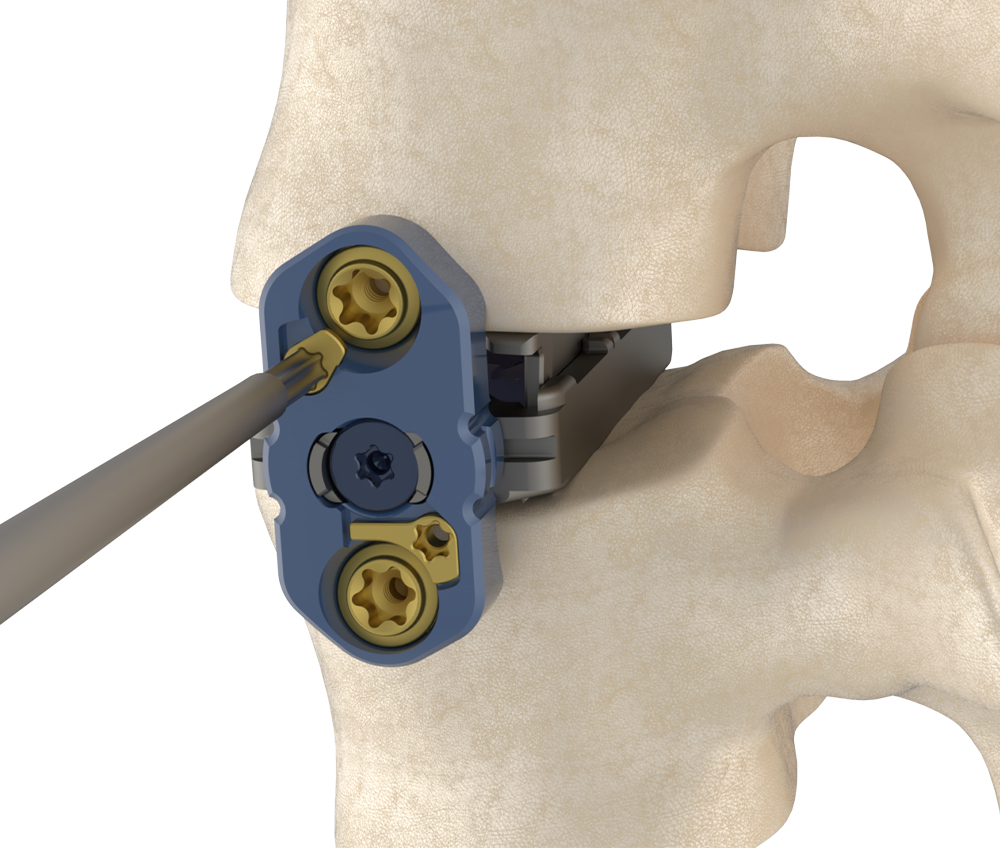

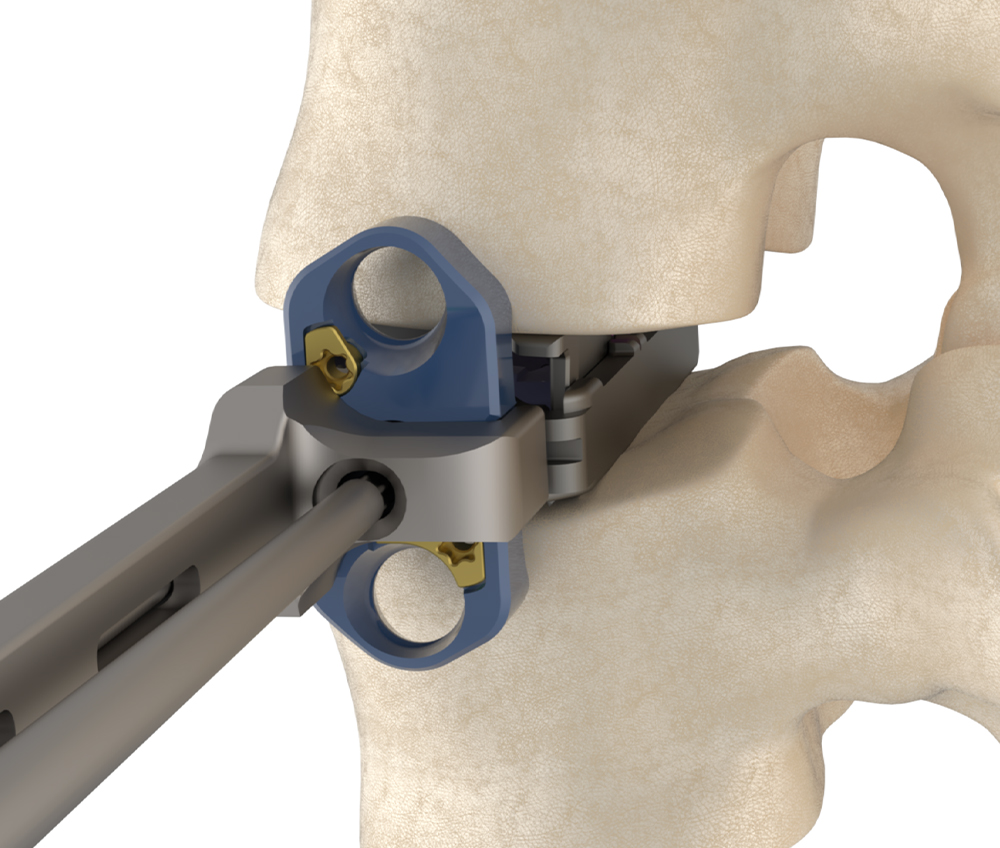

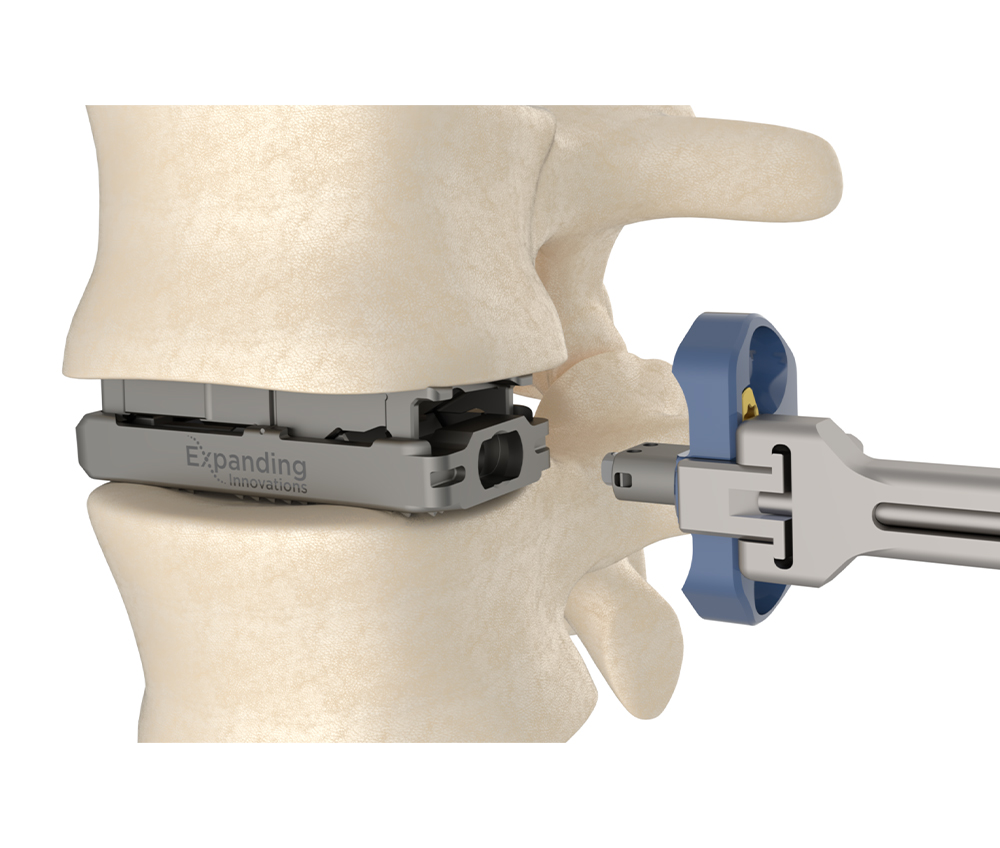

Optional Attachment to X-PAC® LLIF Expandable Cages

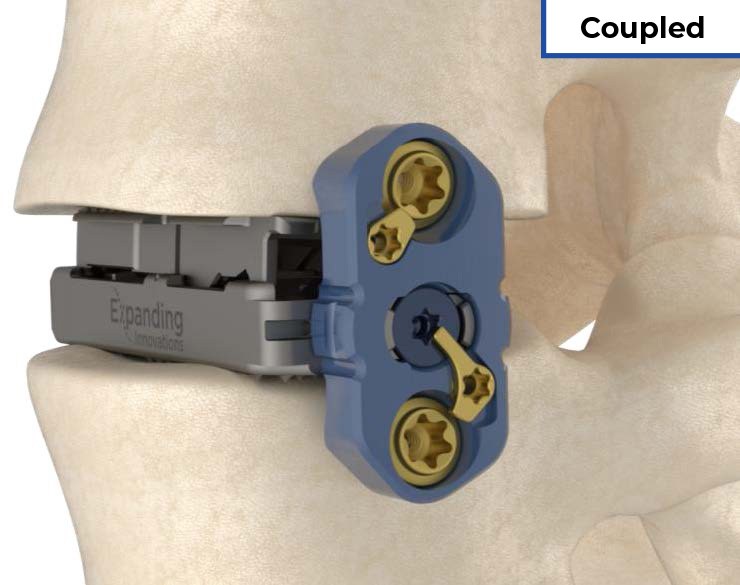

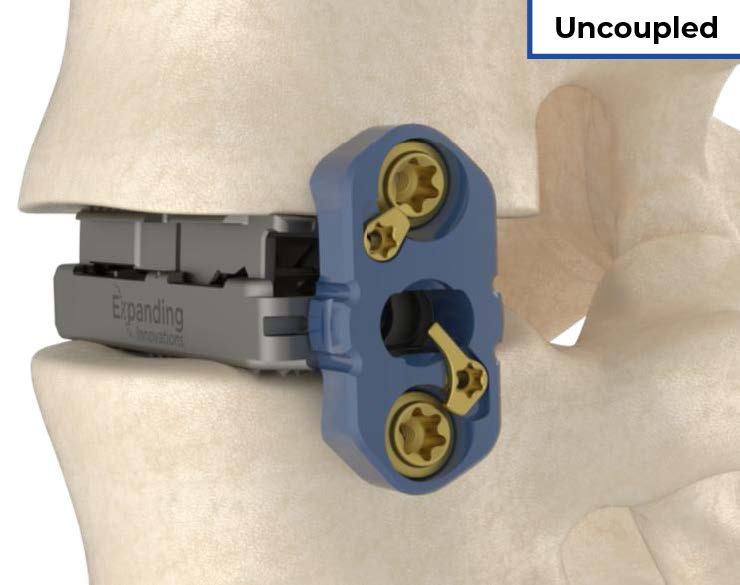

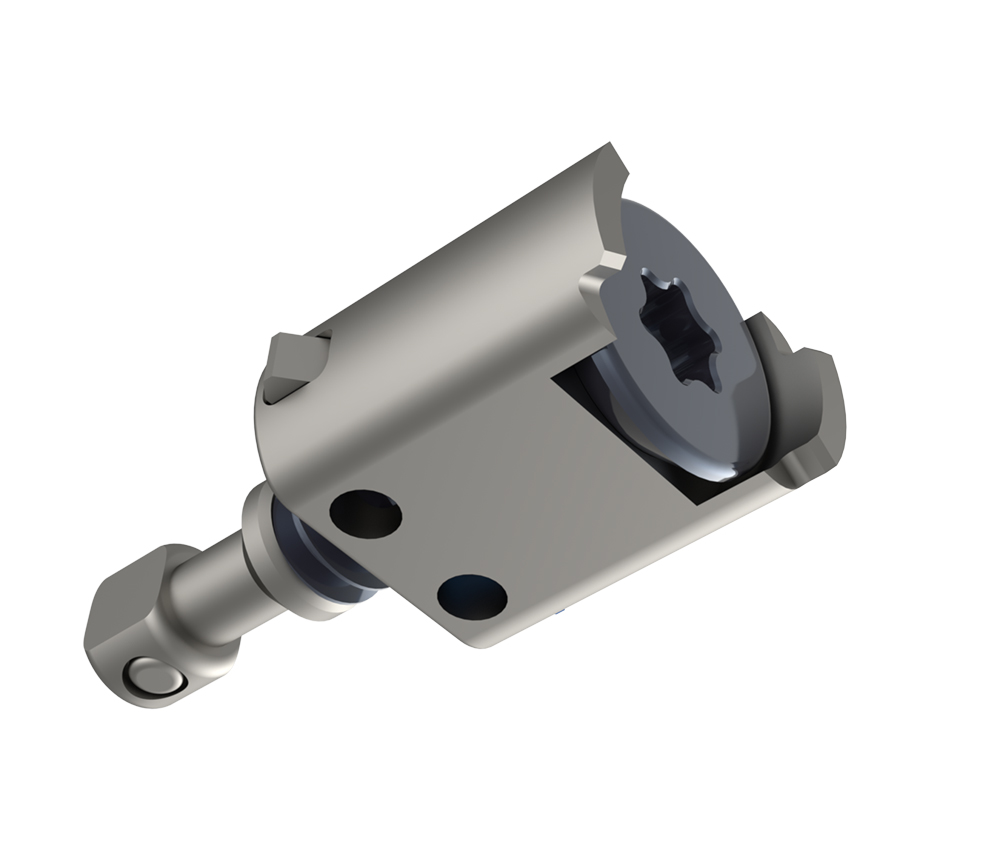

Designed for precision and simplicity, N-GAGE™ Couplers feature a NON-SCREW interface to connect effortlessly to X-PAC® LLIF Interbodies. Once in place, locking wings provide a secure, polyaxial connection to the interbody.
Designed for precision and simplicity, N-GAGE™ Couplers feature a NON-SCREW interface to connect effortlessly to X-PAC® LLIF Interbodies. Once in place, locking wings provide a secure, polyaxial connection to the interbody.

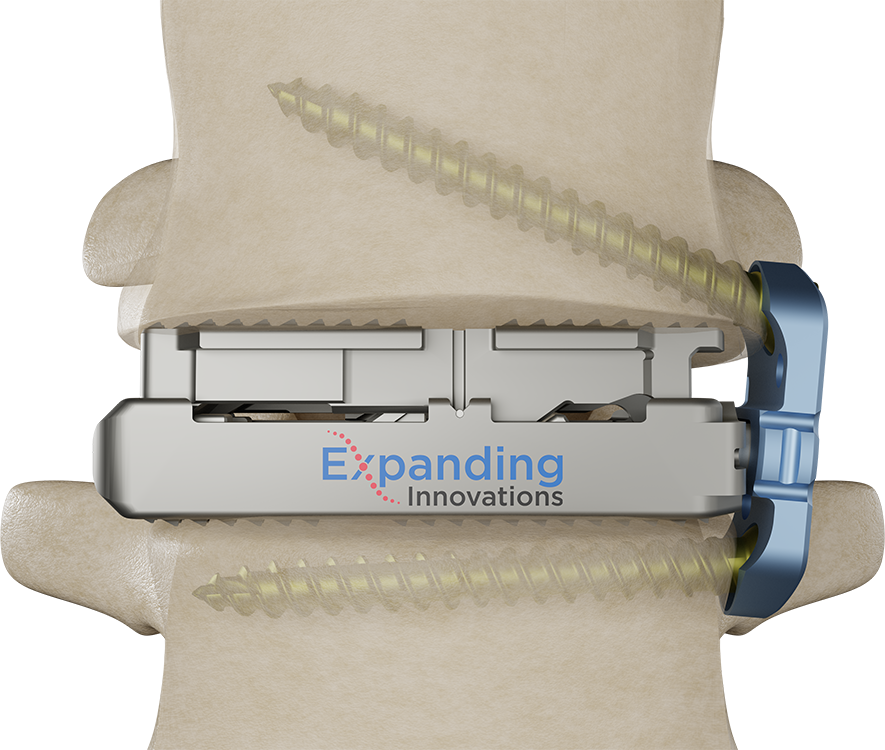

Anatomical Conformity Without Compromising the Cage
A polyaxial connection allows plates to conform to the lateral anatomy without compromising the interbody. Variable Depth Capture provides the ability to connect to interbodies inserted beyond the cortical rim.
Coronal Toggle: +/- 6 degrees

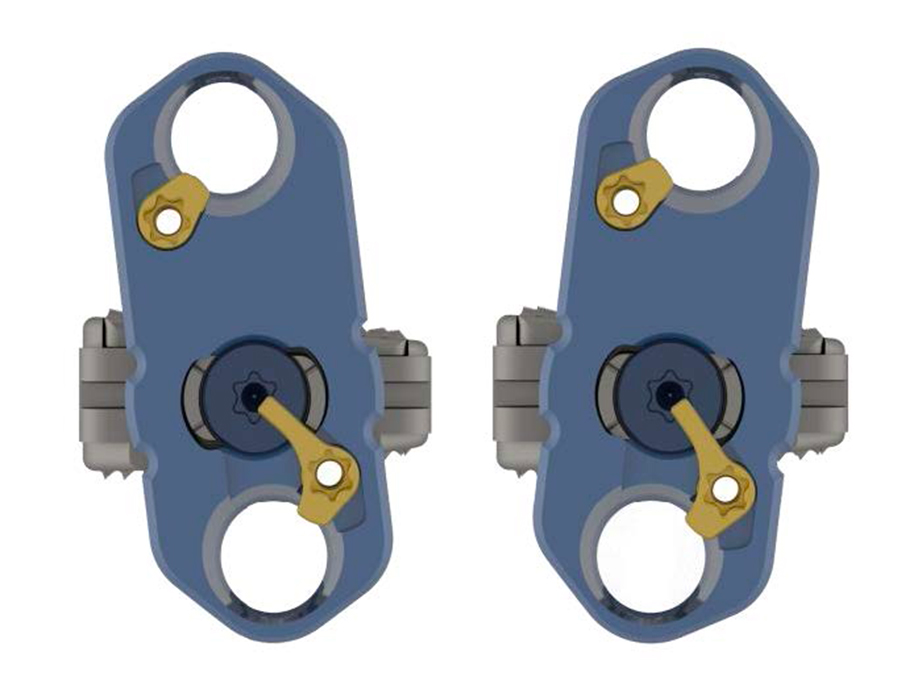

Rotational Toggle: +/- 7 degrees

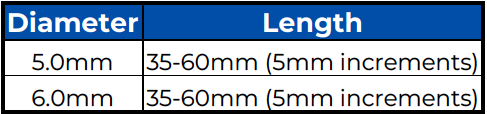

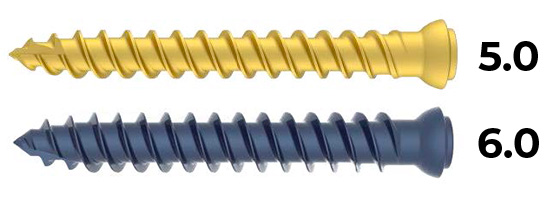

Variable, self-drilling, self-tapping, dual lead screws in multiple diameters and lengths.

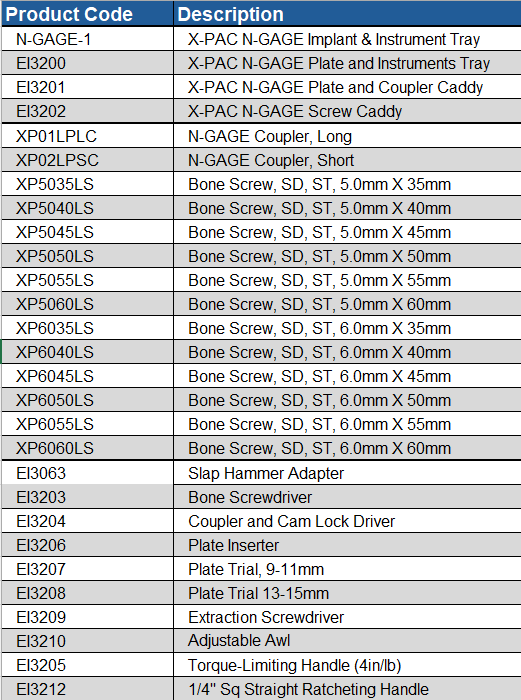

Note: Not all implants come standard in the X-PAC N-GAGE Lumbar Plate Set. Please confirm set configuration prior to ordering set.
